SPECIFICATIONS
5 Stage Filtration: No
Brand Name: WHEELTON
CN: Guangdong
Cartridge Lifetime: Up to 5 years(Specific needs to be combined with local water quality)

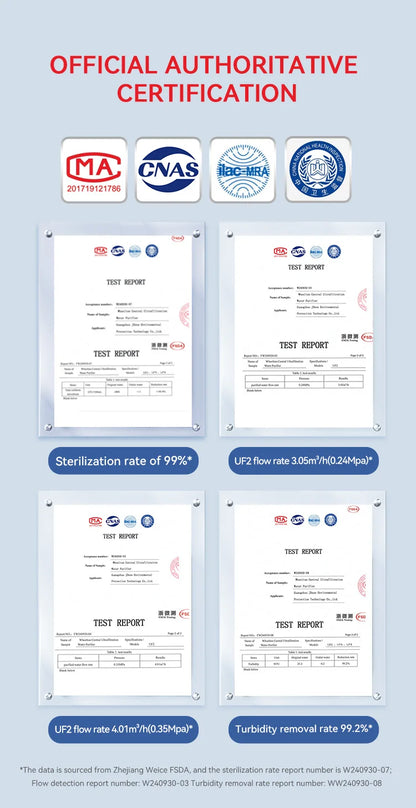

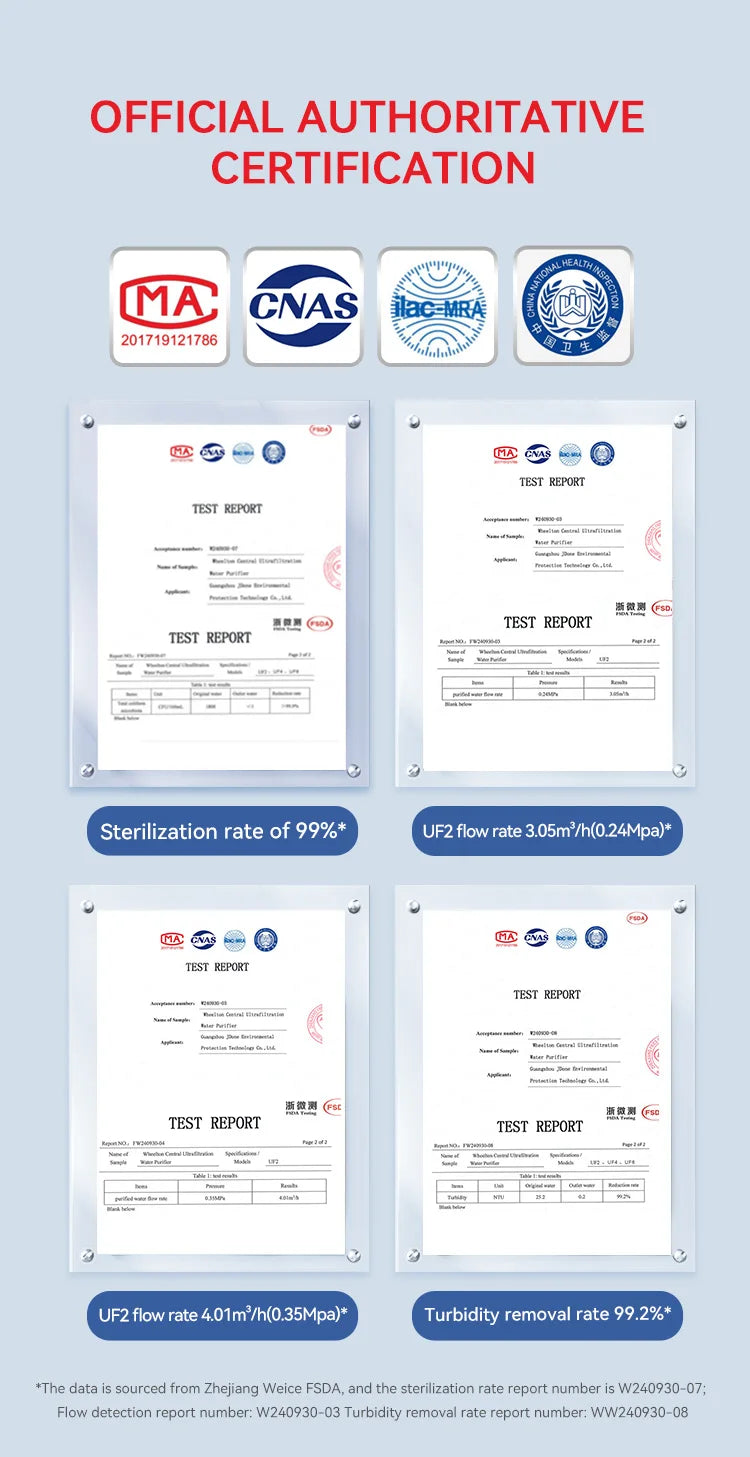

Certification: CE,RoHS

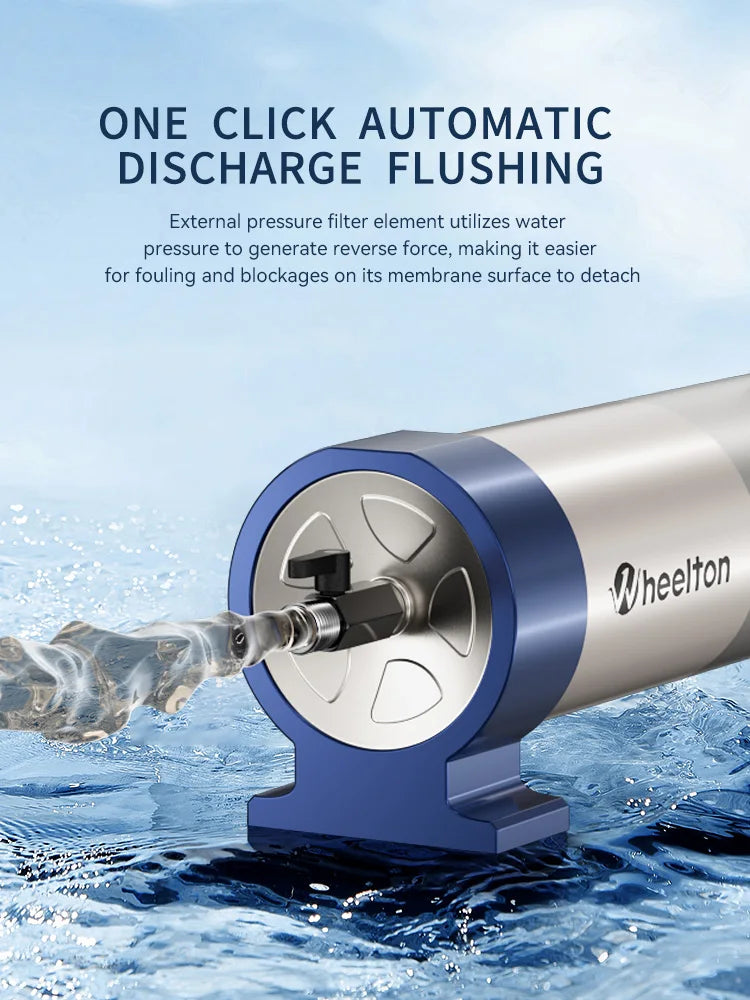

Cleanable Filter: Yes
Electricity: No required

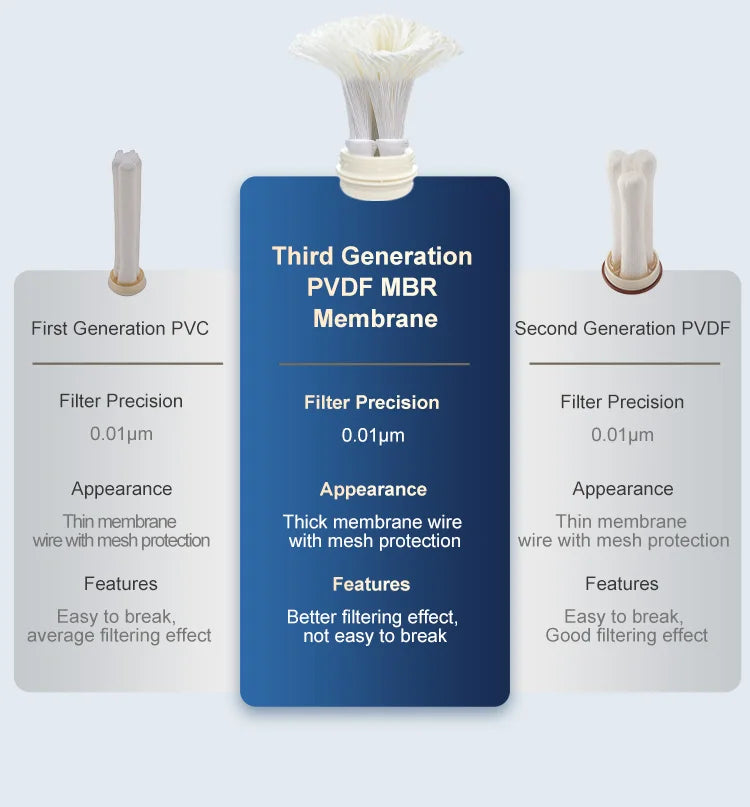

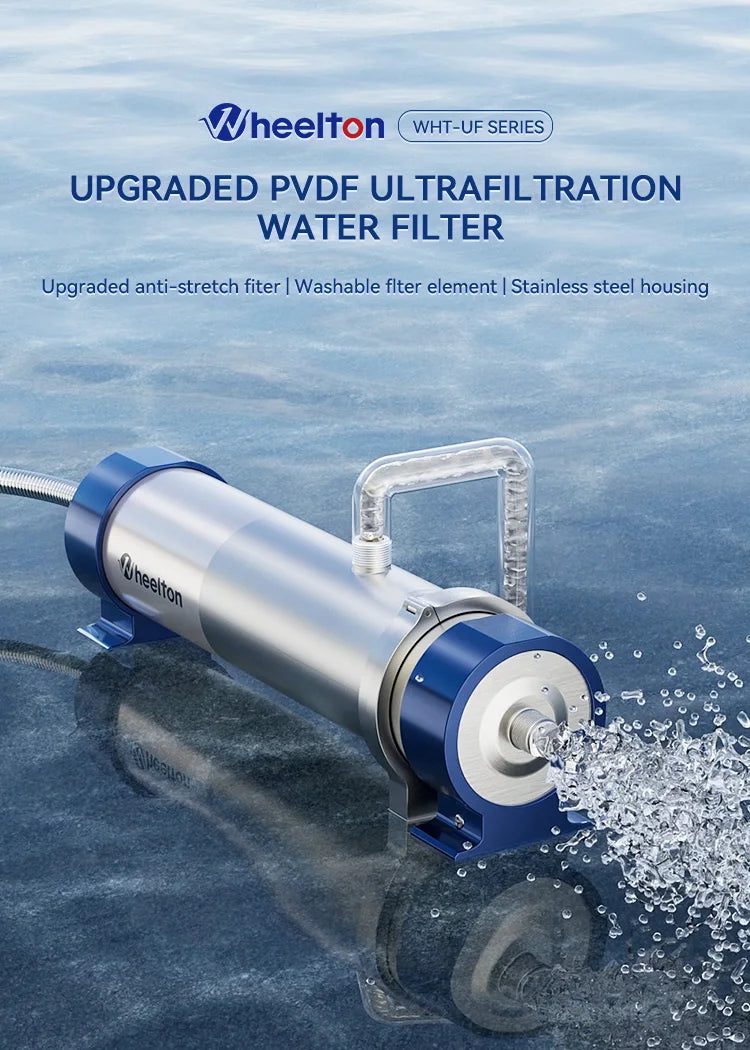

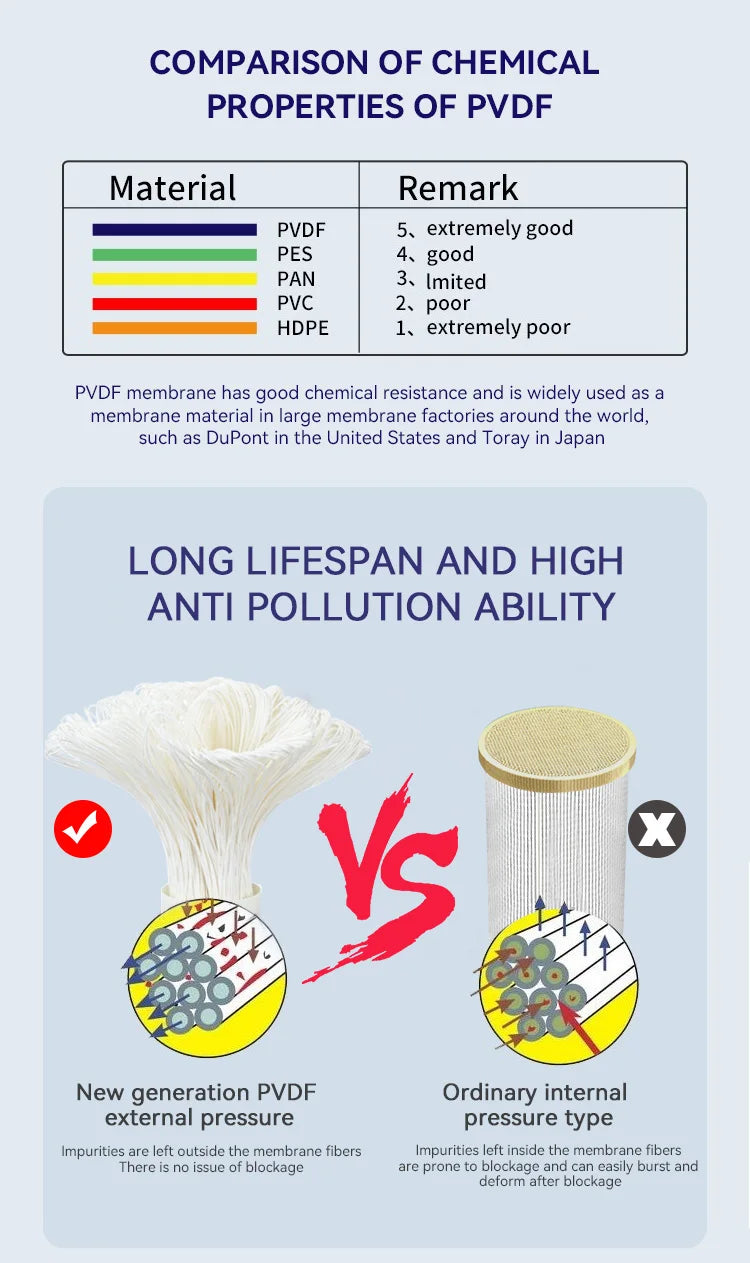

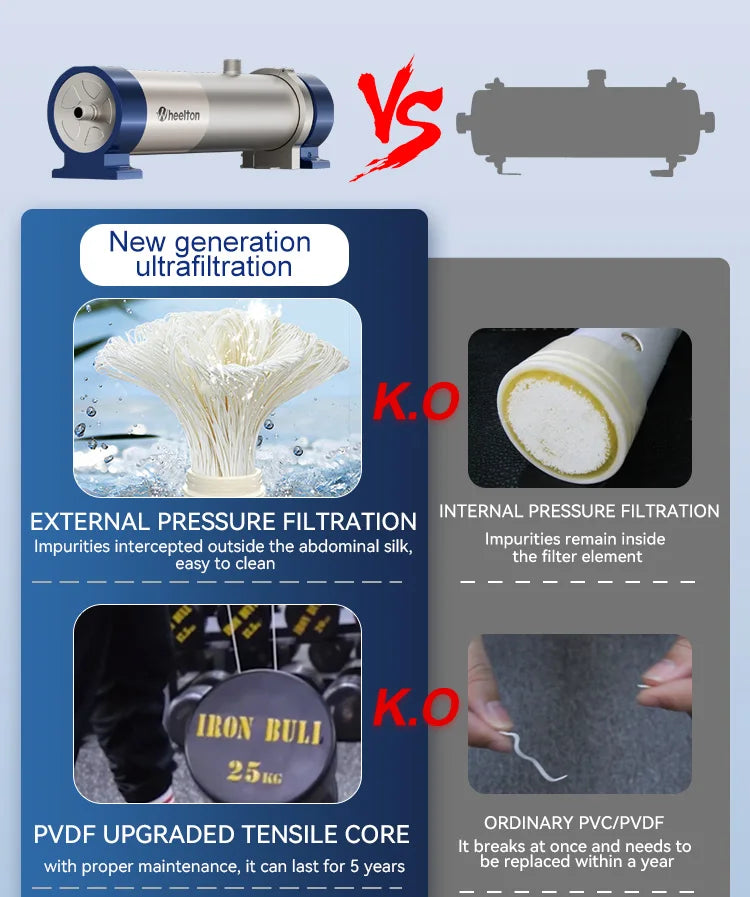

Filter Material: PVDF Ultrafiltration Membrane/UF membrane

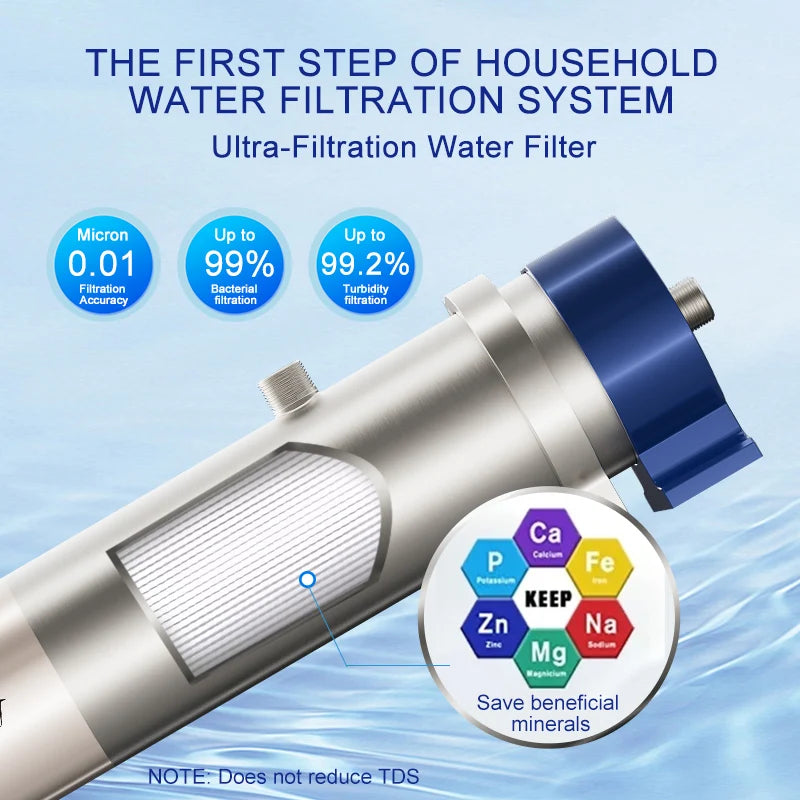

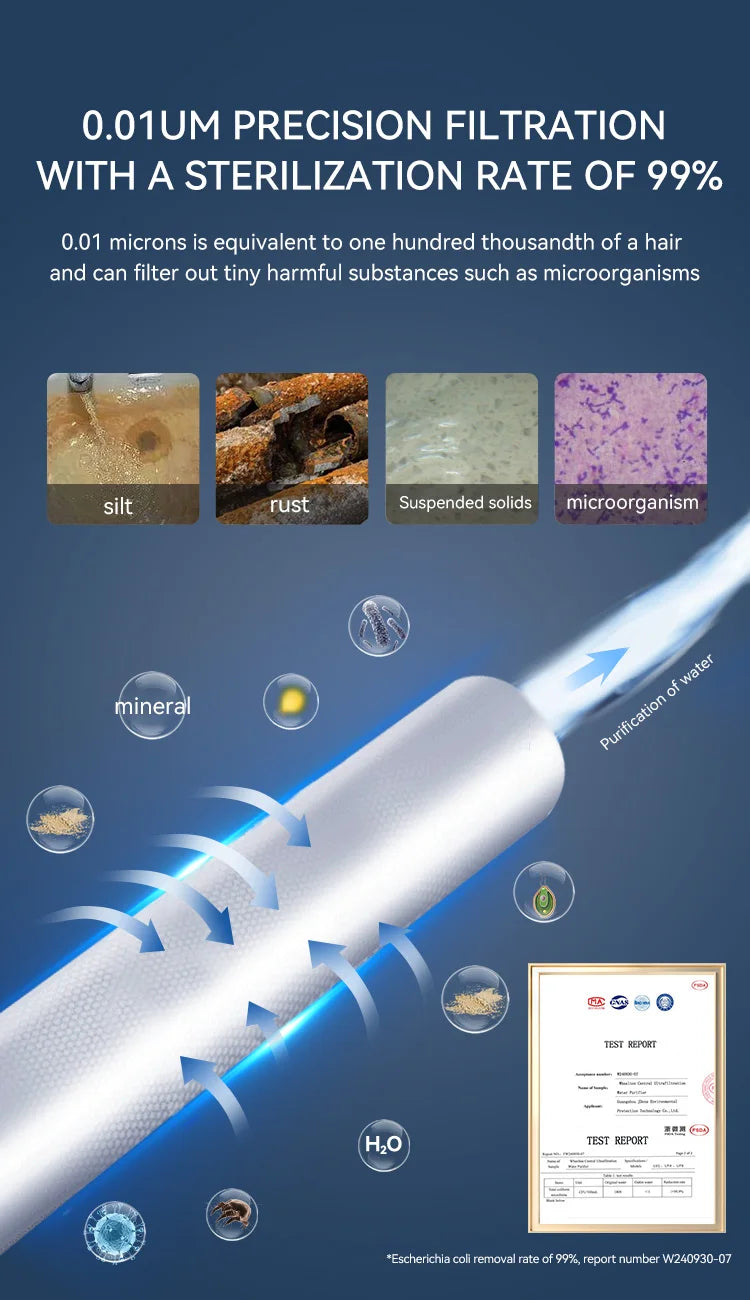

Filtration accuracy: 0.01 micron
Function: Direct Drink,Remove sediment, silt, sand, rust, dirt, suspended solids, and other organic and inorganic substances from water to protect home appliances and pipelines and reduce maintenance costs
High-concerned chemical: None

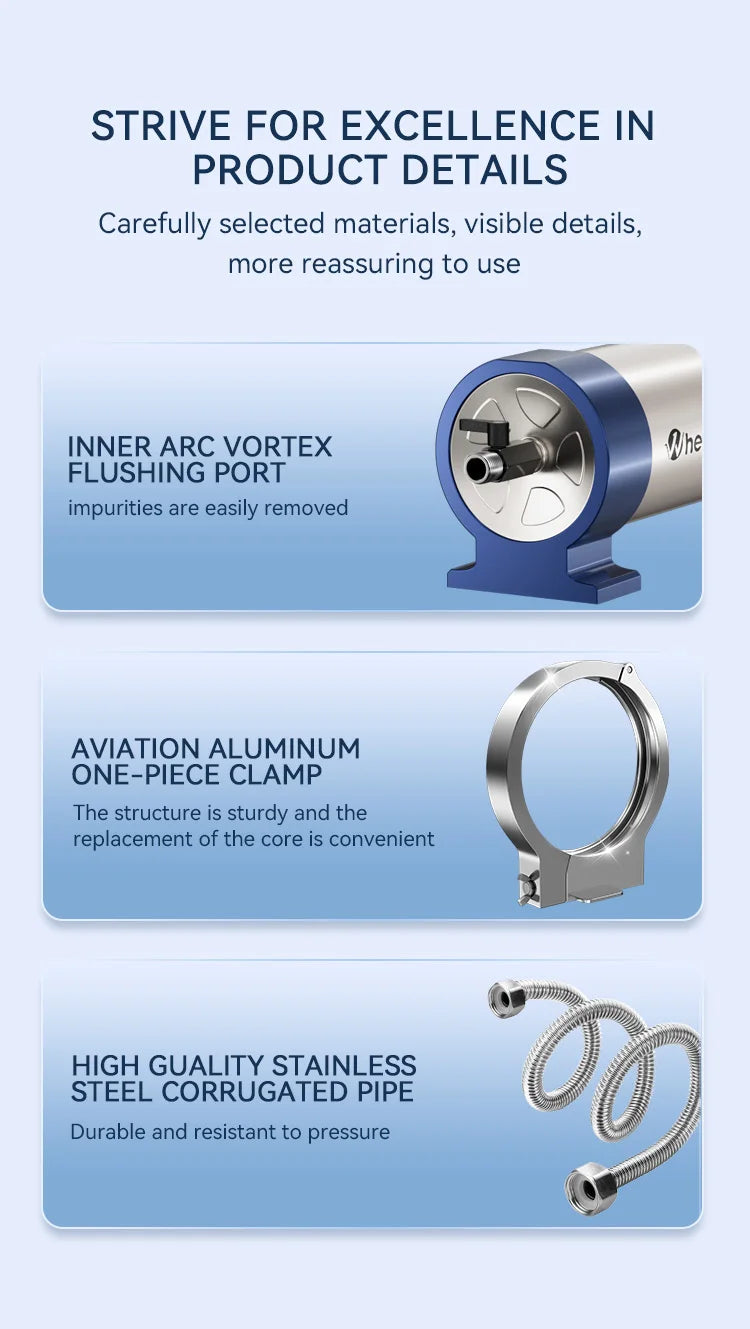

Housing Material: Stainless Steel 304

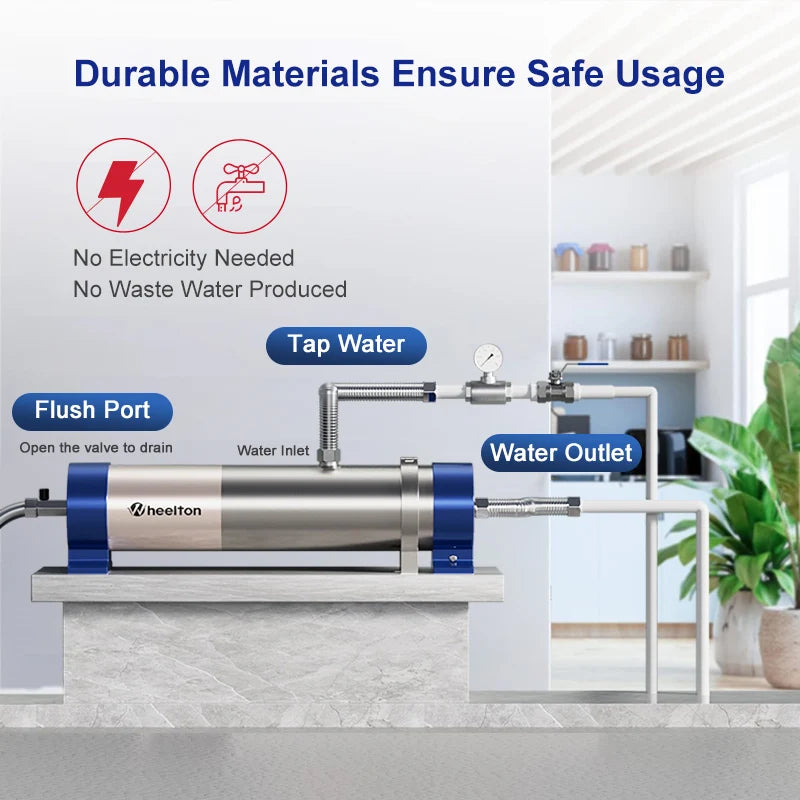

Installation: Cold Water Pipe Installation

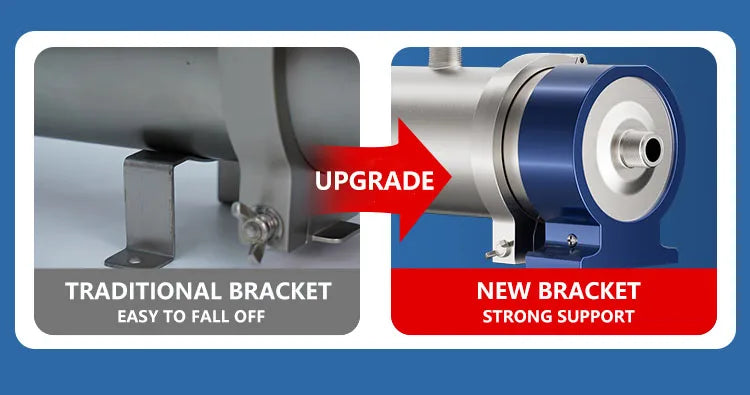

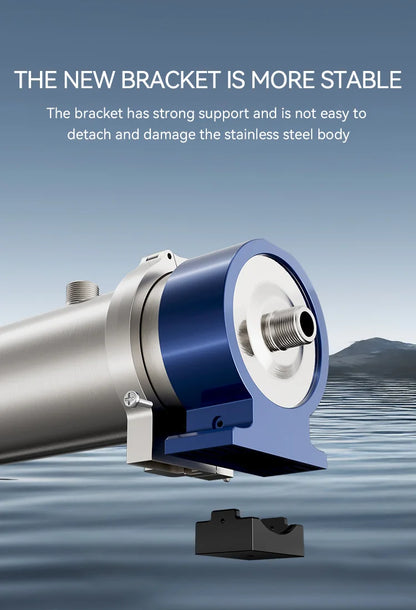

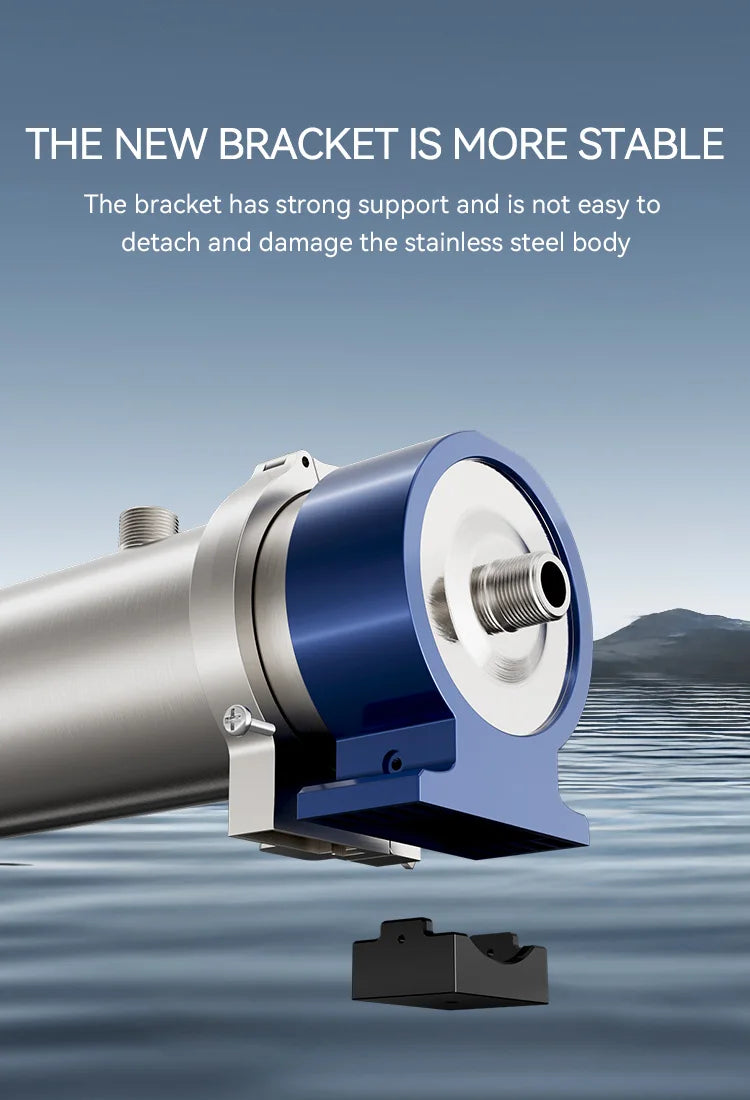

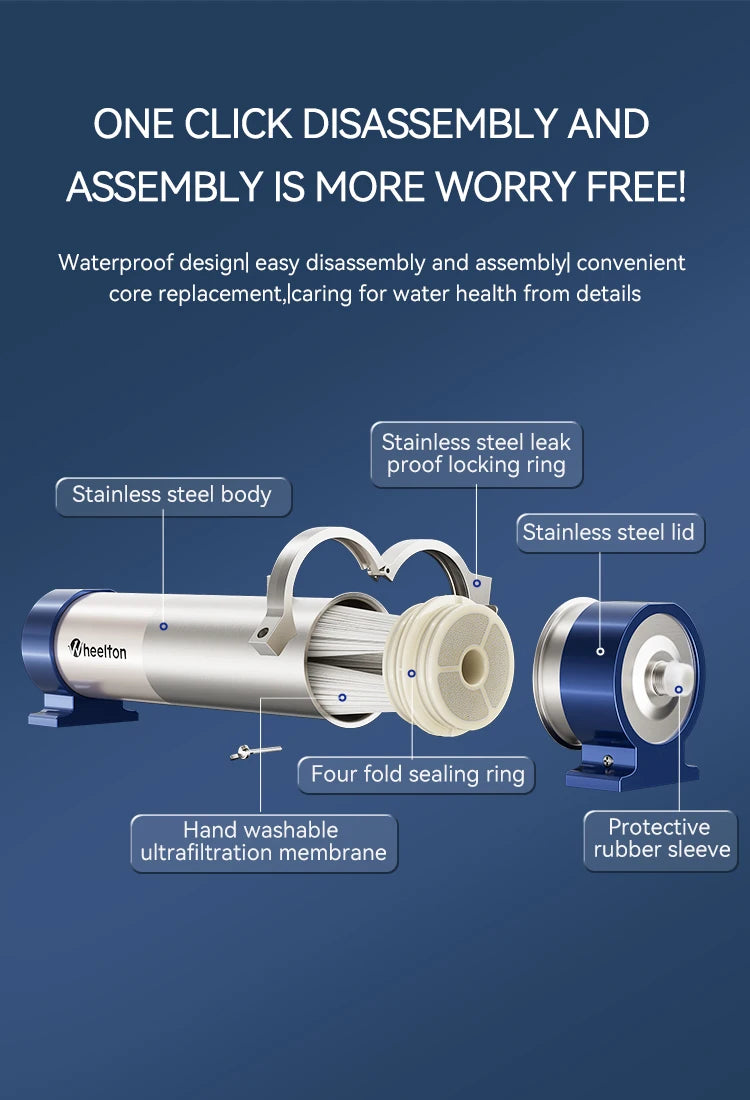

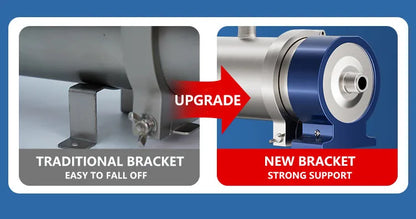

Installation Design: Integrated buckle design
Interface Diameter: DN20

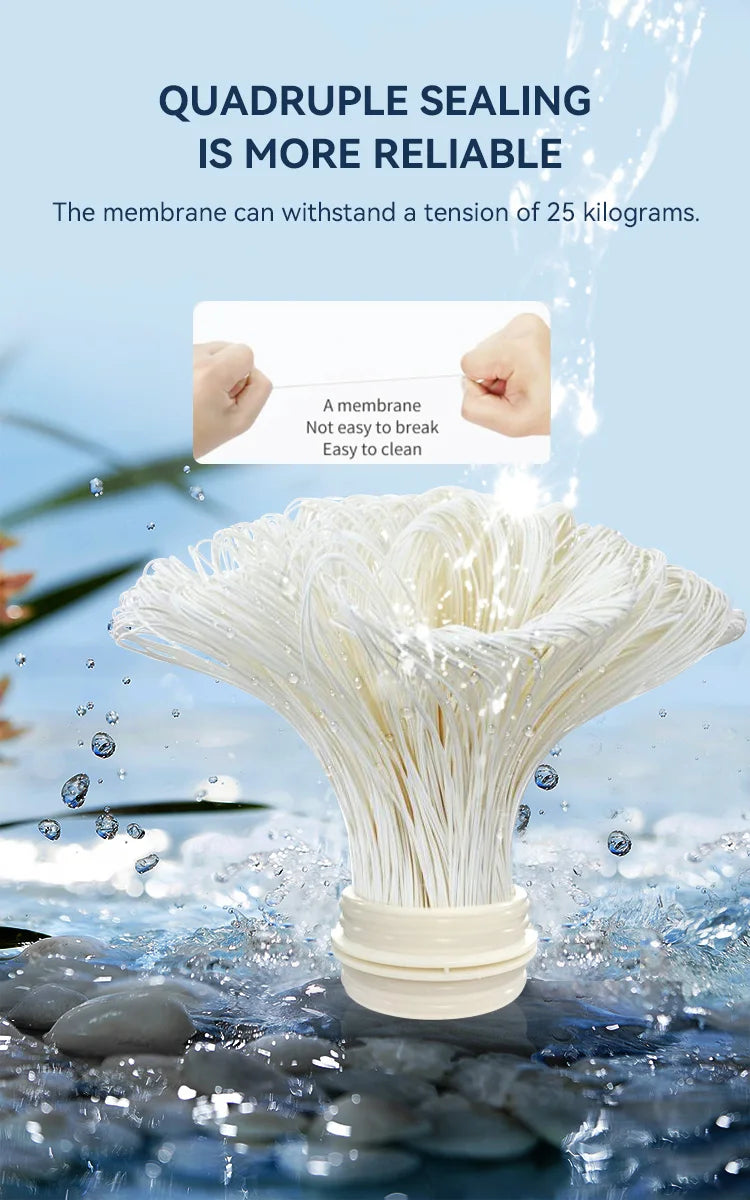

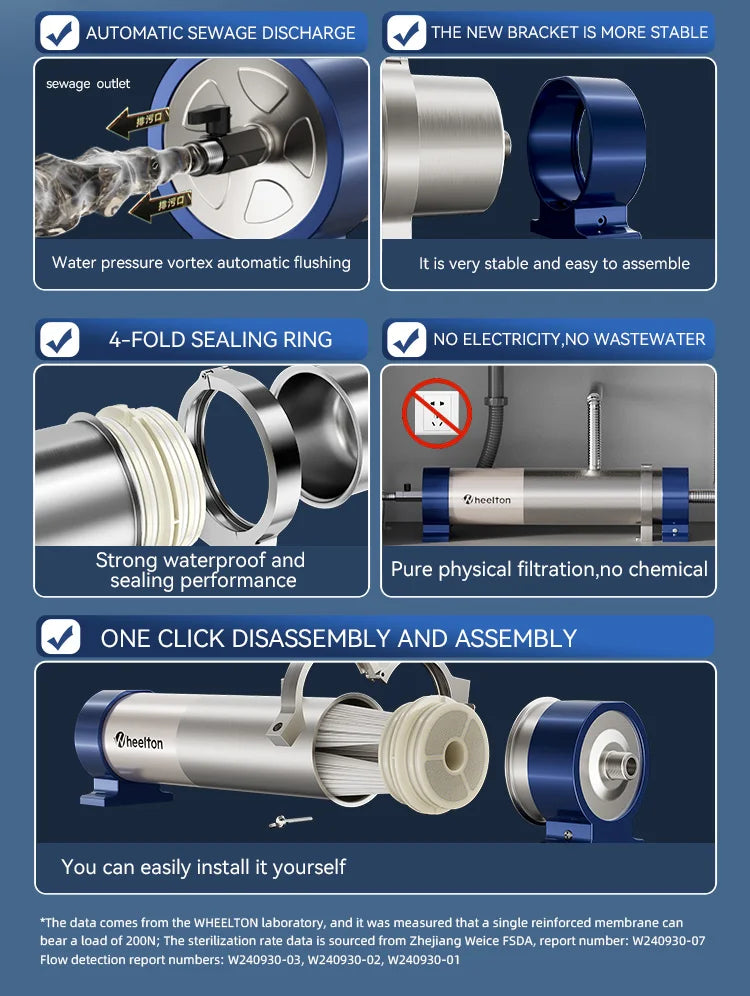

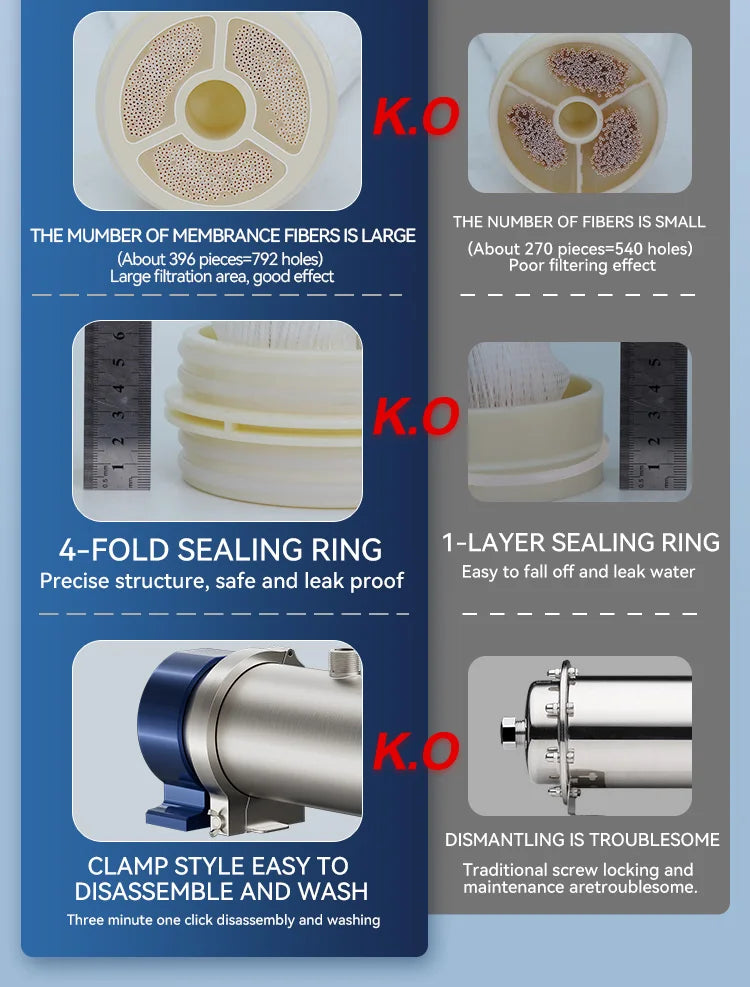

Leak proof: 4-layer sealing ring
Material: Ultra Filtration Membrane Filter Element
Model Number: UF2 UF4 UF6
Noise: Very small (almost unaffected)
Origin: Mainland China
Purifying Position: Central Purification

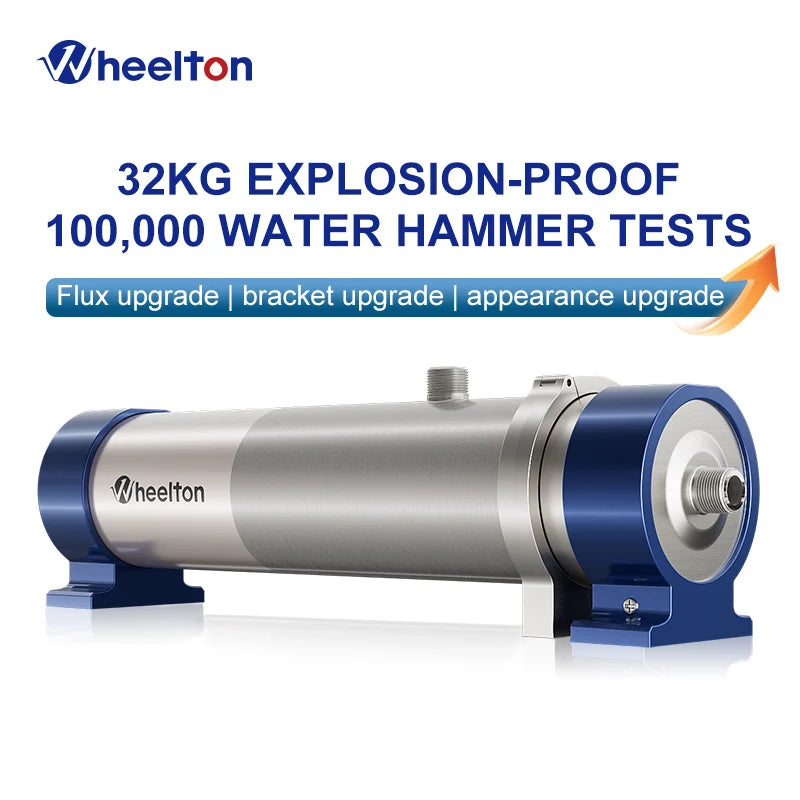

Quality assurance: Large flow matching with large size, no cutting corners in filter material, 32 kg explosion-proof, 100000 water hammer cycles
Type: Ultrafiltration

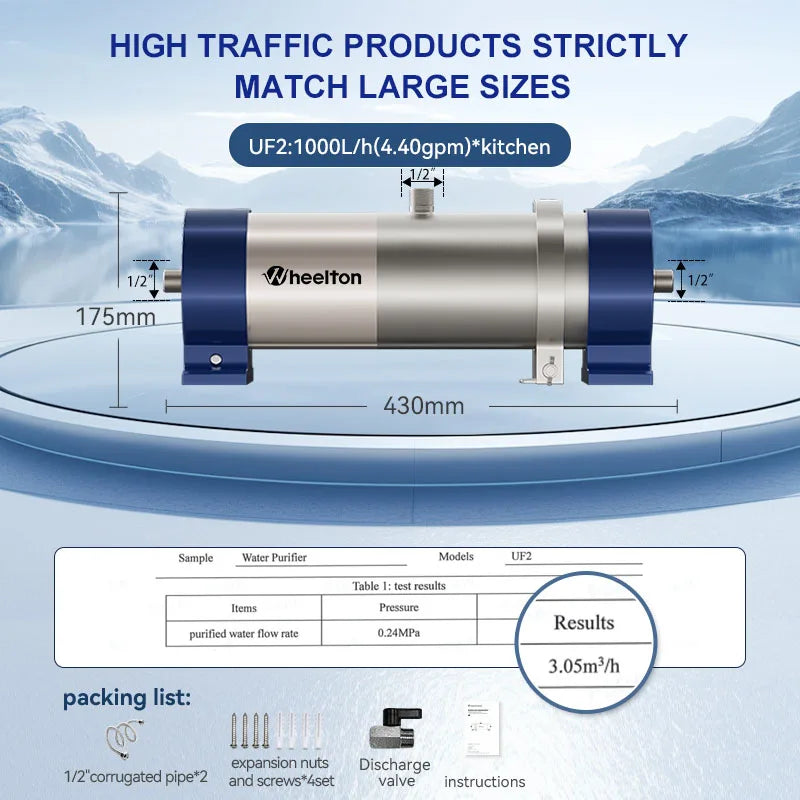

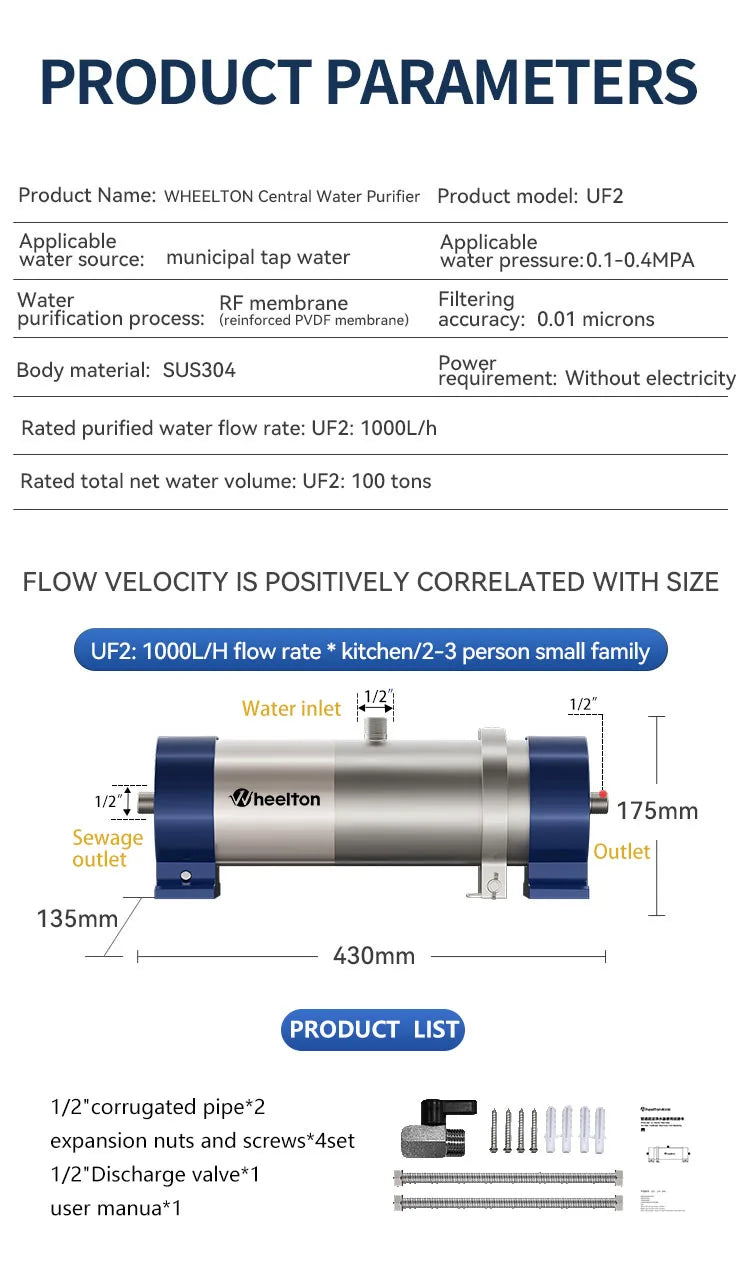

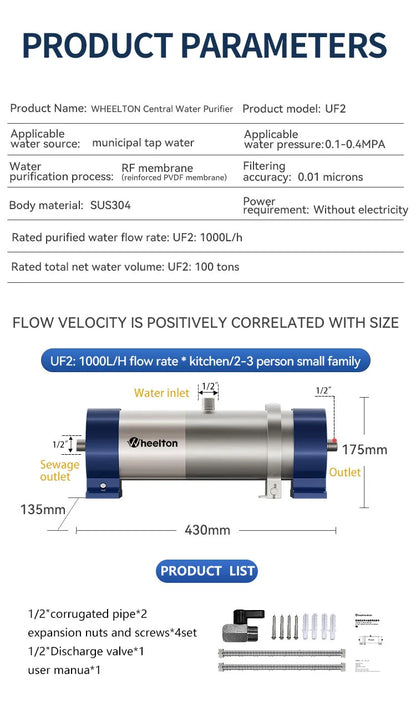

UF2 Size: 430*135*175MM 2.8KG Discharge outlet, inlet and outlet: 1/2"
UF2 Water Flow: 1000L/h(4.40gpm)

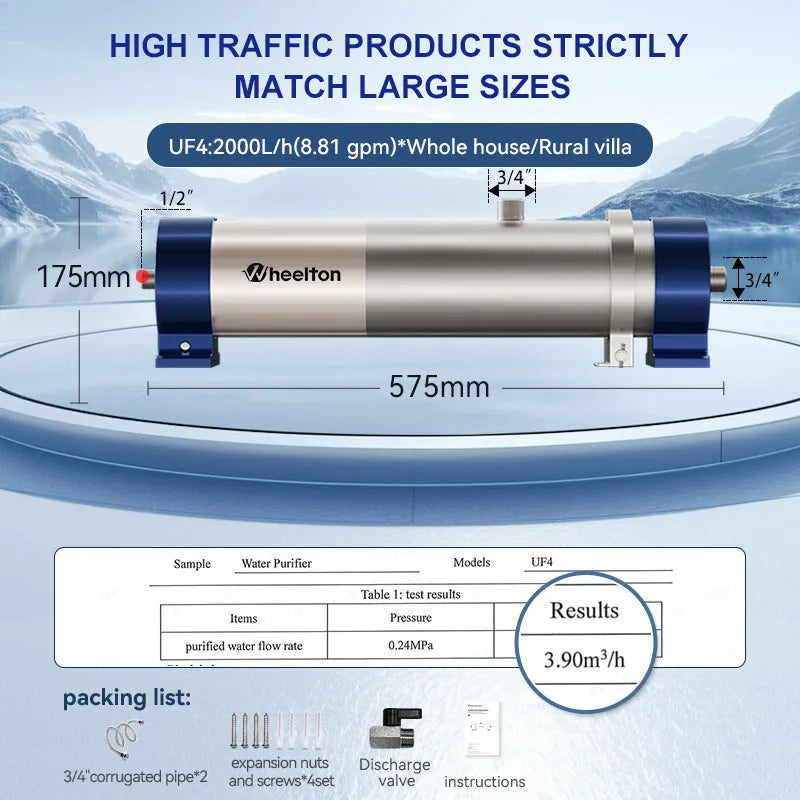

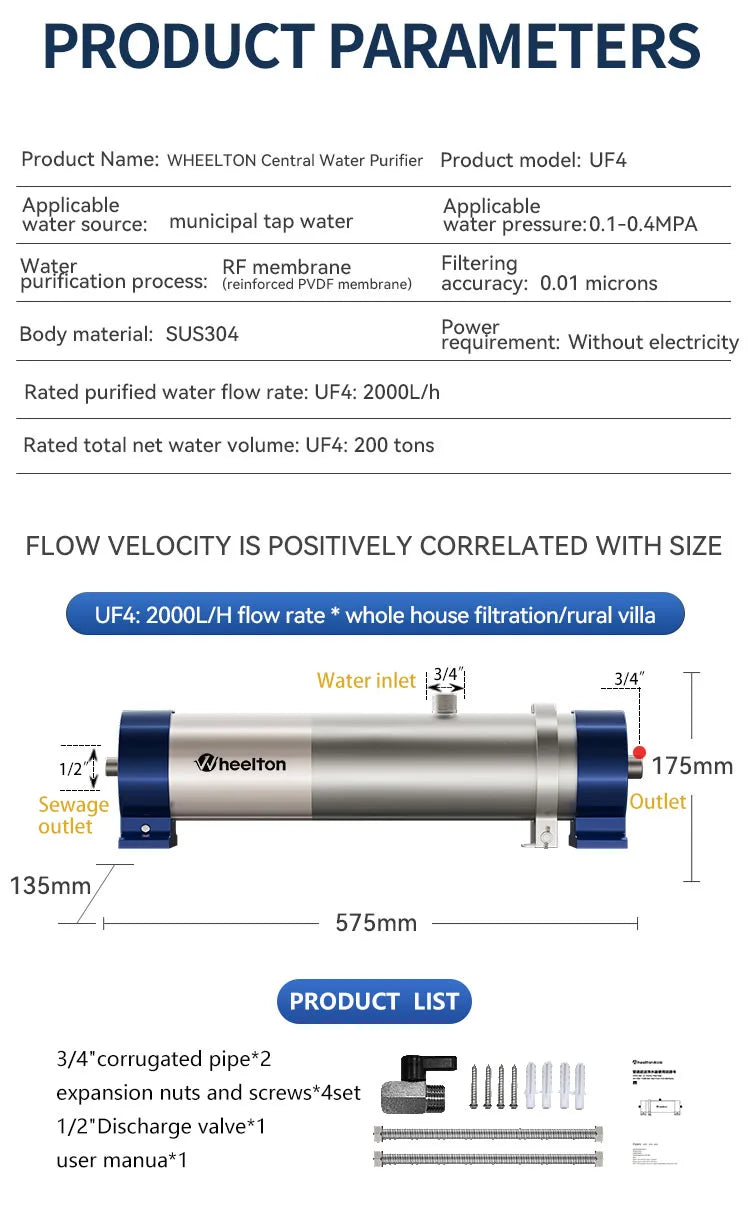

UF4 Size: 575*135*175MM 3.6KG Discharge outlet: 1/2 " Inlet and outlet: 3/4"
UF4 Water Flow: 2000L/h(8,81gpm)

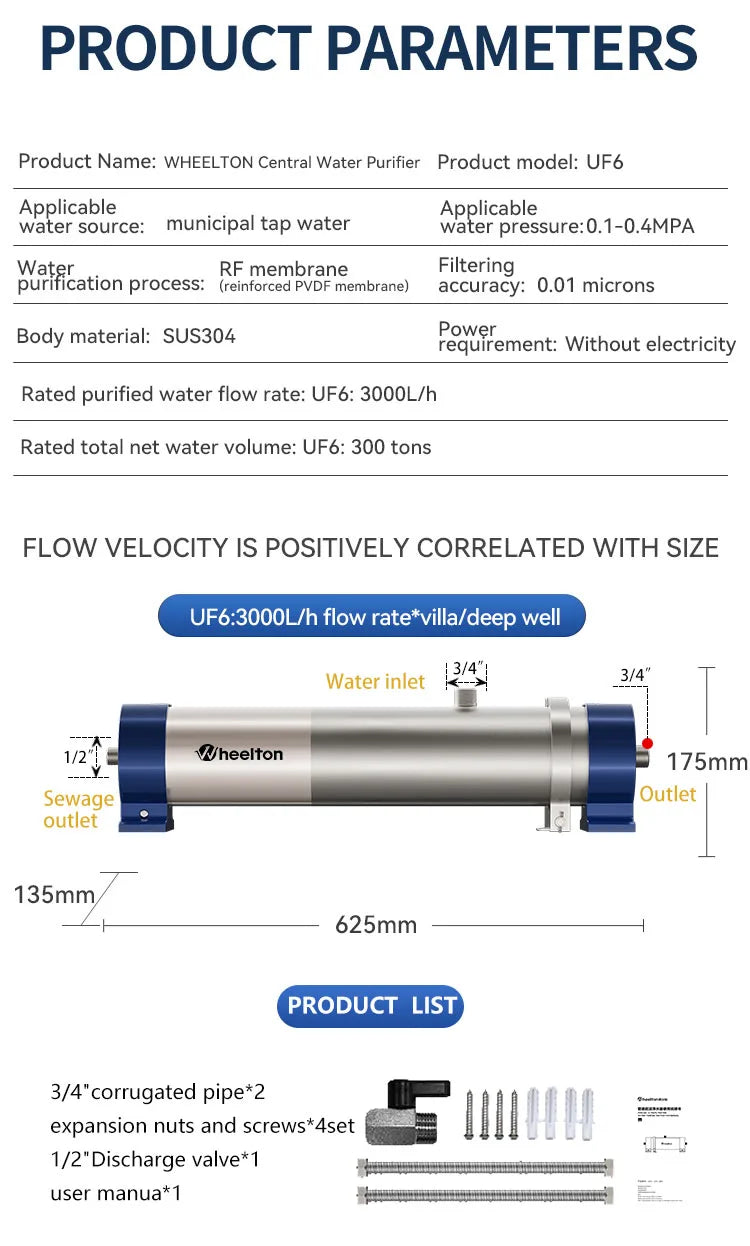

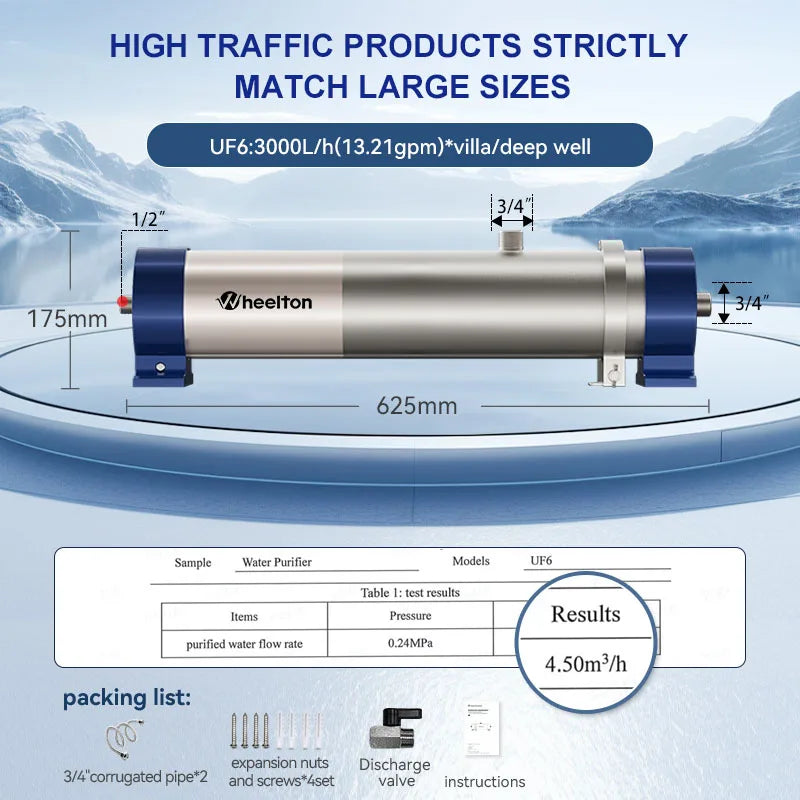

UF6 Size: 625*135*175MM 4.0KG Discharge outlet: 1/2 " Inlet and outlet: 3/4"
UF6 Water Flow: 3000L/h(13.21gpm)

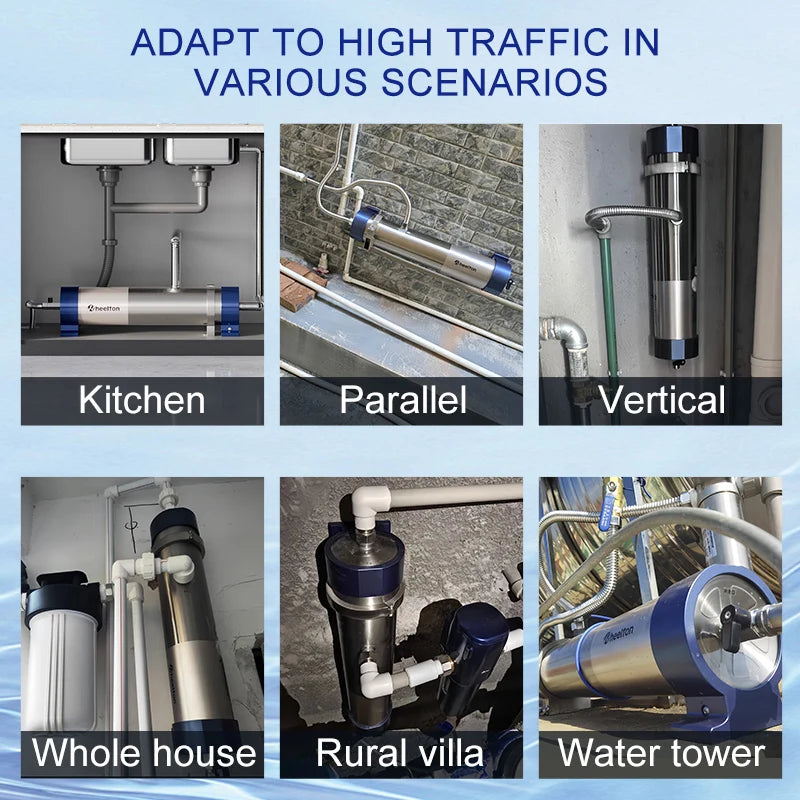

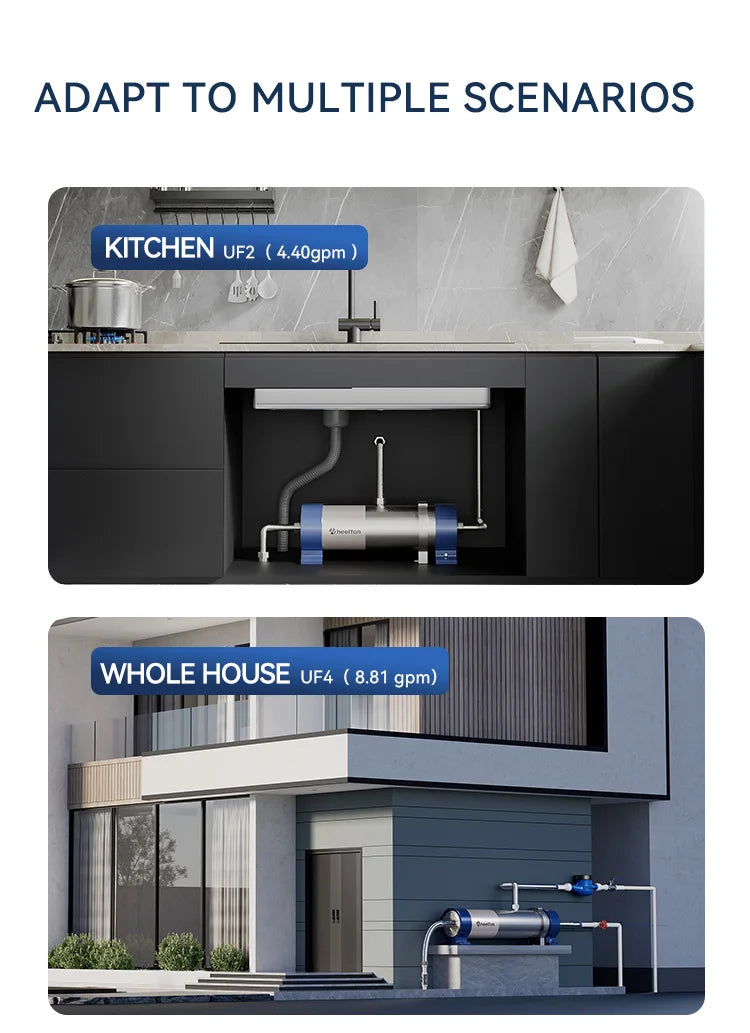

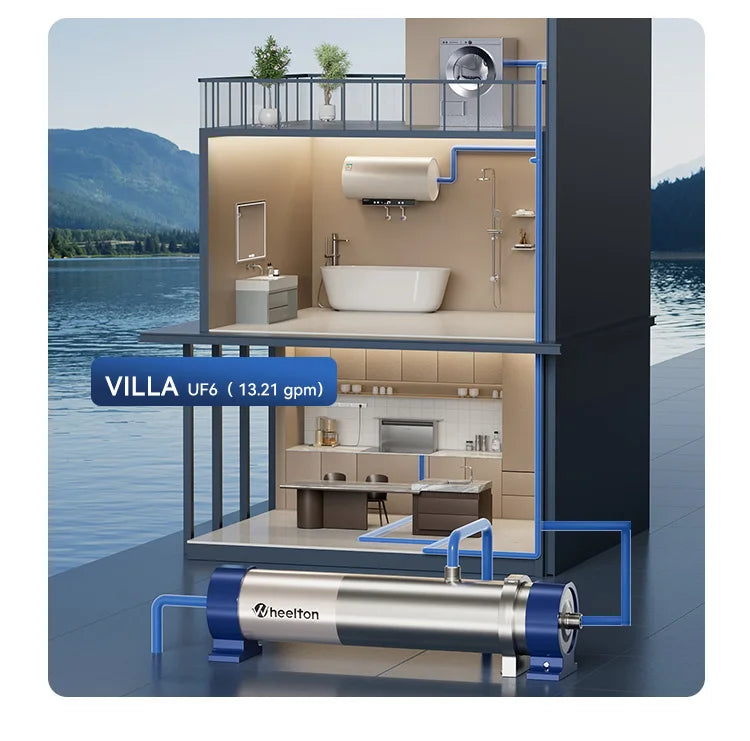

Usage scenario: UF2 (kitchen under sink ) UF4 (whole house farm country villa RV) UF6 (deep well villa lake river water, factory water tank groundwater Outdoor Garden)
Use: Household Pre-Filtration
Water Quality Requirements: Municipal Water

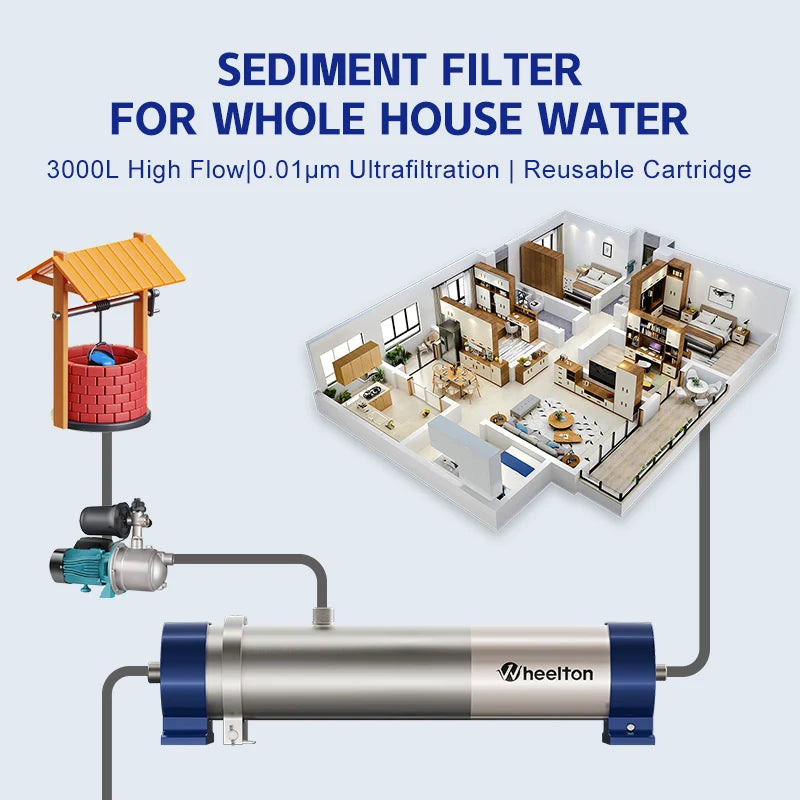

Water filter type: Whole house water purifier filter,Whole house sediment filter,The first step of the water filter system
Water treatment machine Type: Central Water Purifier
hydraulic pressure: 0.1-0.4Mpa
waste water: No waste water produced
